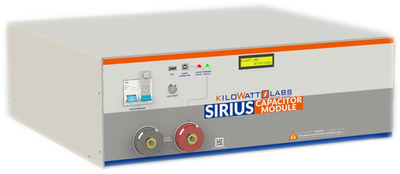

Sirius Energy Storage

• Actively balanced and stable operation at all commercial voltages
• Flat discharge curve (module discharge rate is determined by the load)
• 2% per month self-discharge when idle and in sleep mode
• Cell level energy density of 70-80Wh/kg
• Supercap cell cycle life and capacity unaffected by high rate of charge or discharge
• Supercap cell projected calendar life of 45 years and cycle life of 1,000,000 cycles

• High charge / discharge capability
• Wide operating temperature range of supercap cells
• No degradation of capacity and efficiency over cycle life
• Works with standard inverters/rectifiers/regulators used with Lead Acid or Li Ion batteries
• Non-toxic, with no risk of thermal runaway
• Form factor similar to chemical batteries

Feature                                                                    Sirius                                           Chemical Batteries

Cycle Life (Projected)                                          1000,0000                                           200 to 10,000

DC to DC Efficiency (@25⁰C)1                          99% (Constant over life)           70% to 95% (degrades over life)

Usable Capacity as %  of rates capacity        100% (Constant over life)          50% to 80% (degrades over life)

Temperature range 1                                       -30⁰C to 85⁰C                                       -20⁰C to 65⁰C

Operation outside temperature range            Yes                                                                No

Max Rate of Charge 2                                          1.7C (120C)3                                    0.1C to 0.5C (NA)4

Max Rate of Discharge 2                                     1.7C (120C)3                                    0.1C to 0.5C (NA)4

Thermal Runaway                                                No Risk                                           Medium to High Risk

Energy Density (Wh/kg)                                     70  to 80 (7)                                        70 to 100 (5)

Disposal Costs                                                    Deferred                                              Significant

Environmental Impact                                       None                                                    Signifcant

Short/Medium/Long Duration                         Single Module                                Different batteries for different deployment

Warehousing                                                      No maintenance                             Periodic charging

• 1 Performance may vary at different temperatures and at different C-rates.
• 2 Max. rate of charge and discharge is provided for a standard Sirius module. This rate may vary at      different temperatures and for different Sirius modules.
• 3 Rapid charge of storage for EV’s.
• 4 Rapid charge at 120C is not possible with chemical batteries.
• 5 On useable capacity basis.
• 6 Publicly available information. Manufacturer data may vary
• 7 Supercap cell level.

Sirius Energy Storage products for stationary  applications are currently available in selected markets. This modular  and scalable system provides a technically and commercially viable,  plug-and-play replacement for chemical batteries. Applications include:

• CELL TOWER
• SOLAR + STORAGE
• GENSET + STORAGE
• MICROGRIDS
• SOLAR STREET LIGHTS
• WIFI POLES
• SECURITY CAMERA POLES
